Figure 3 of
Yan, Mol Vis 2006;
12:205-214.Figure 3 of
Yan, Mol Vis 2006;
12:205-214.

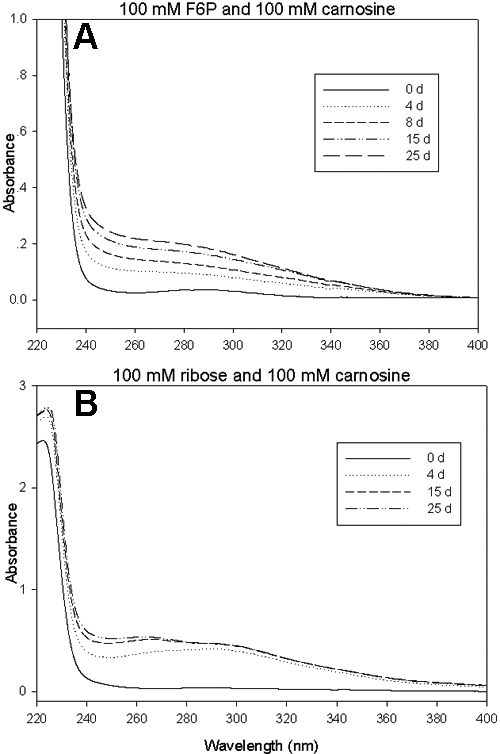

Figure 3. The absorbance spectra of fructose 6-phosphate and ribose incubated with carnosine preparations
The time-dependent increased absorbance was observed in the presence of carnosine and 100 mM fructose 6-phosphate (F6P) or 100 mM ribose. A: F6P and carnosine preparation after 0, 4, 8, 15, and 25 days incubation. B: Ribose and carnosine preparation after 0, 4, 15, and 25 days incubation.
