Figure 7 of Kannan, Mol Vis 2006; 12:1649-1659.

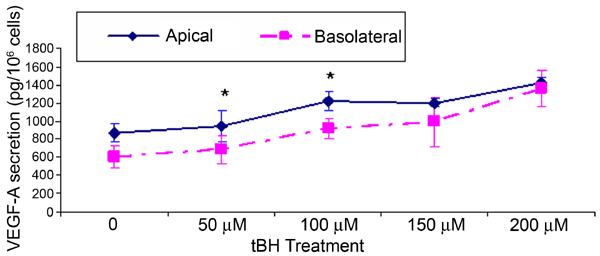

Figure 7. Dose-dependent effect of t-butylhydroperoxide treatment on apical and basolateral secretion of vascular endothelial growth factor-A in polarized ARPE-19 monolayers

Secretion at 5 h treatment with t-butylhydroperoxide of vascular endothelial growth factor-A (VEGF-A) was significantly higher (p<0.05) versus the untreated controls. Processing of cells for VEGF secretion and calculations are given in Methods. Data are mean±SEM (n=4).

(18 K)

Kannan, Mol Vis 2006; 12:1649-1659 <http://www.molvis.org/molvis/v12/a189/>
©2006 Molecular Vision <http://www.molvis.org/molvis/>
ISSN 1090-0535
