Figure 1. Placement of primers used in analysis of CHST6 and upstream regions

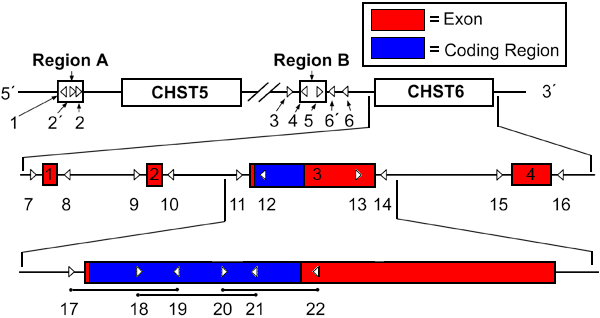

Diagram showing placement of primers used in analysis of CHST6 and its possible upstream rearrangements. Anomalous chromosomal crossovers can result in the deletion of Region B and CHST5 or the substitution of Region A for Region B. These rearrangements can be detected by various combinations of forward and reverse primers 1-6. Primers 7-16 were used for analysis of splice sites. Primers 17-22 were used for analysis of the coding region.
