Figure 4 of Vanita, Mol Vis 2006; 12:1217-1222.

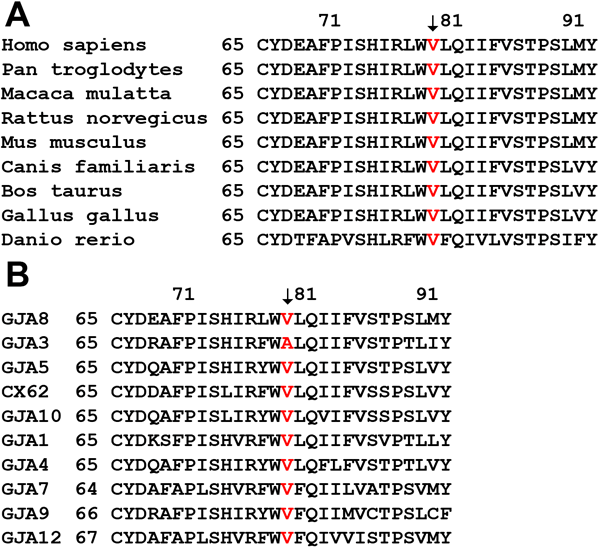

Figure 4.

A multiple alignment of amino acid sequences of Cx50 in different species and in different human α-type gap junction proteins. Alignment data indicate that valine at position 79 is highly conserved in different species (A) and in different α-type gap junction proteins in humans (B).

(82 K)

Vanita, Mol Vis 2006; 12:1217-1222 <http://www.molvis.org/molvis/v12/a138/>
