Figure 7 of Andrieu-Soler, Mol Vis 2006; 12:1098-1107.


Figure 7. Semithin eye sections at different times after treatment

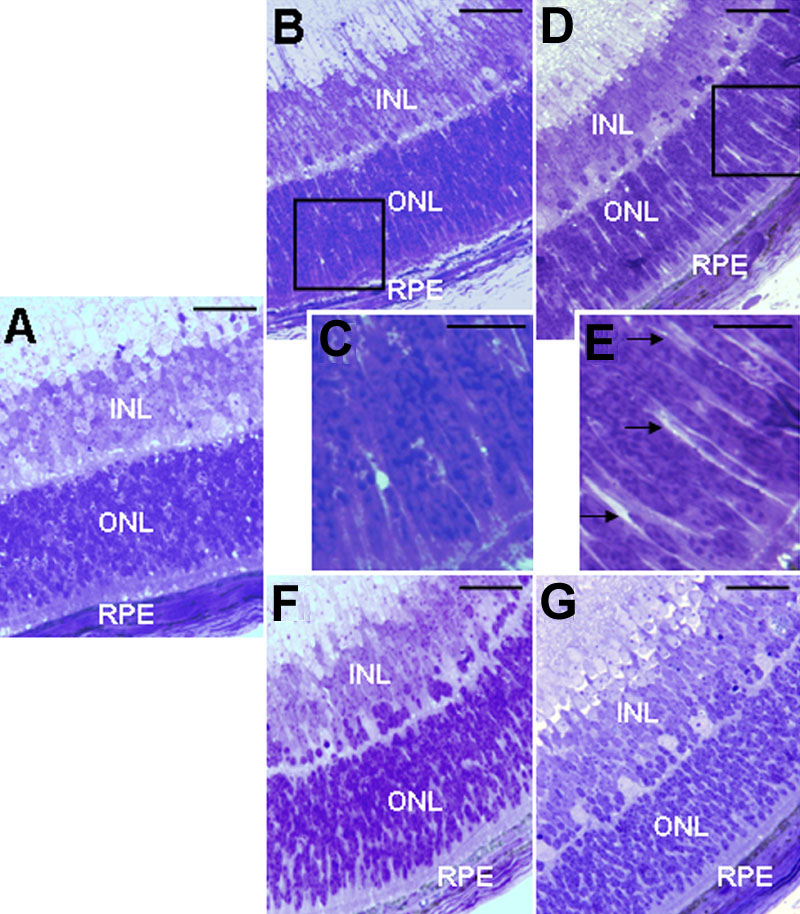

Semithin section of control untreated PN7 rd1/rd1 eye section (A). PN7 rd1/rd1 eye section at 1 h after intravitreous injection of labeled oligonucleotide (ODNs) without prior saline iontophoresis (B) or with prior cathodal saline iontophoresis (D). Higher magnifications showing retina structures from eyes shown in Panels B,D are shown in Panels C,E, respectively. PN7 rd1/rd1 eye section at 24 h after intravitreous injection of labeled ODNs without prior saline iontophoresis (F) or with prior cathodal saline iontophoresis (G). Arrow represents vacuoles. RPE represents retinal pigment epithelium cells; ONL represents outer nuclear layer; INL represents inner nuclear layer. Scale bars represent 50 μm in A,B,D,F,G (x25) and 25 μm in C,E.
