Figure 5 of Chen, Mol Vis 2006; 12:983-994.


Figure 5.

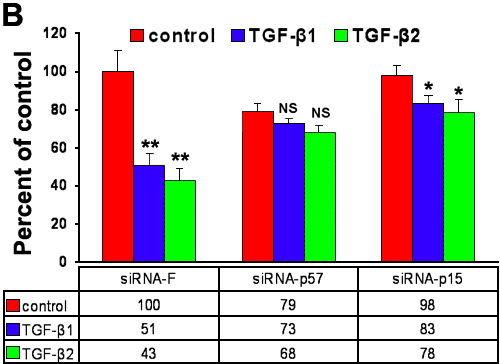

Cell proliferation ability assay. A: Representative BrdU incorporation in primary cultured human limbal epithelial cells treated with siRNA-F, siRNA-p57, and siRNA-p15 with or without TGF-β1 or TGF-β2 treatment (1 ng/ml). B: MTT assay showing effects of siRNA-F, siRNA-p57, and siRNA-on cell proliferation of TGF-β1 or TGF-β2 treatment (1 ng/ml) in primary cultured human limbal epithelial cells. In the image, NS indicates not significant, the asterisk indicates a p<0.05, and the double asterisk indicates a p<0.01.

(85 K)



(18 K)

Chen, Mol Vis 2006; 12:983-994 <http://www.molvis.org/molvis/v12/a110/>
©2006 Molecular Vision <http://www.molvis.org/molvis/>
ISSN 1090-0535
