Figure 3 of
Shimauchi-Matsukawa, Mol Vis 2005;
11:1220-1228.

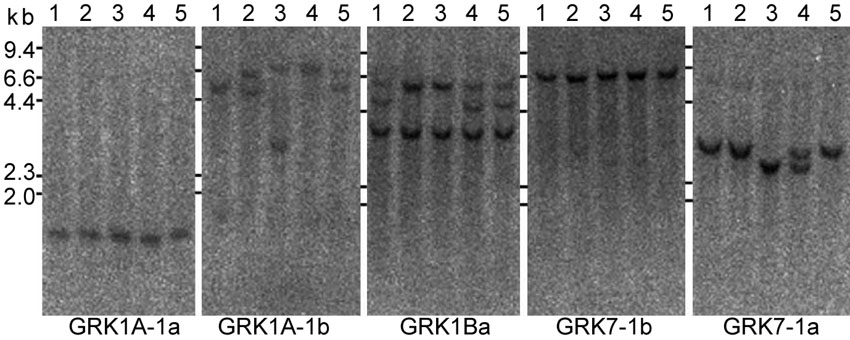

Figure 3. Genomic Southern hybridization analysis of carp GRK genes
Genomic DNAs (3 μg per sample) were digested with PstI from five representative carp (lanes 1-5) and were electrophoresed and hybridized with the probes shown. All carp genomic DNAs tested here contained all of the GRK1 and GRK7 subtypes. Sizes (kbp) of the HindIII-digest markers are shown on the left and between the panels.
