Figure 4 of Robinson, Mol Vis 2005; 11:1211-1219.

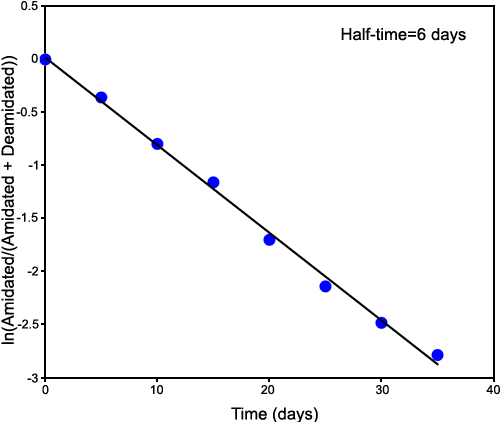

Figure 4. First deamidation of GlyAsnAsnAsnGly

The first-order deamidation rate curve for single deamidation of GlyAsnAsnAsnGly, using deamidation of the first isotopic cluster. This figure is ln[A/(A+B+C+D)] versus time. The measured deamidation half-time is six days. The quantitative linearity and zero deamidation intercept of the plot demonstrate that this deamidation has been accurately and separately measured by the mass defect ICR FTMS technique.

(10 K)
