Figure 3. Multiple genes for lens-specific membrane proteins in zebrafish

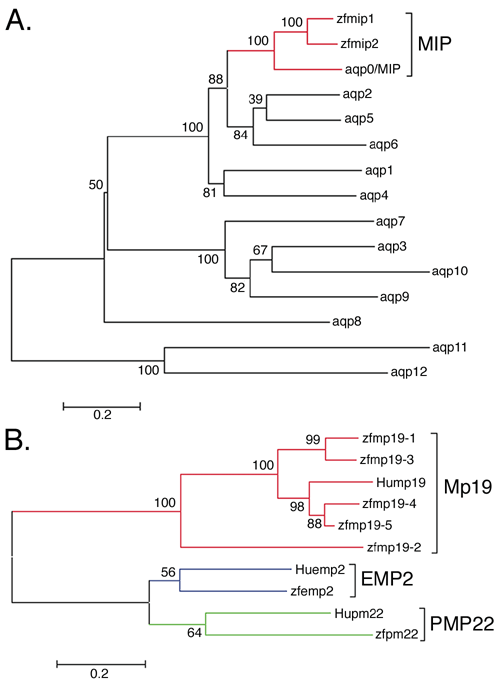

Phylogenetic comparisons of selected zebrafish lens proteins. A: Tree diagram depicting the two zebrafish major intrinsic proteins (MIP) in relation to human aquaporins 0-12. B: Positions of the five zebrafish Mp19 isoforms (zfmp19-1, zfmp19-2, zfmp19-3, zfmp19-4, and zfmp19-5) in the EMP2/PMP22 claudin family are shown in relation to human Mp19 (Hump19), human EMP2 (Huemp2), human PMP22 (Hupm22), zebrafish EMP2 (zfemp2), and zebrafish PMP22 (zfpm22).
