Figure 3 of Jablonski, Mol Vis 2004; 10:577-587.

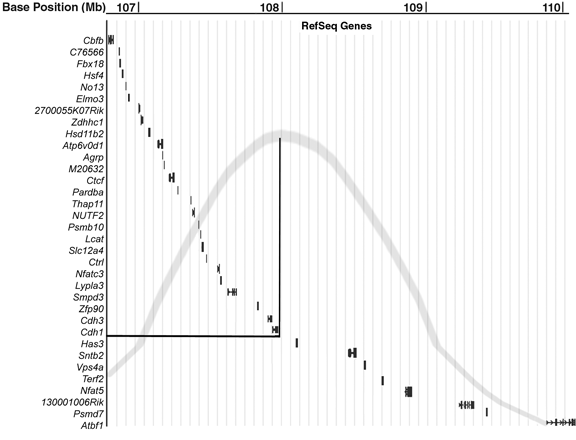

Figure 3. Genes contained in the 2-LOD support interval of ldis1

2-LOD support interval of ldis1 (light grey curve) superimposed on a Genome Browser view of chromosome 8 from 106.6 to 110.4 Mb (October, 2003 assembly, mm4). Thirty-four positional candidate genes (from Cbfb to Atbf1) are listed in positional order on chromosome 8. Cdh1 is located near the peak of the 2-LOD significance interval.

(55 K)

Jablonski, Mol Vis 2004; 10:577-587 <http://www.molvis.org/molvis/v10/a70/>
©2004 Molecular Vision <http://www.molvis.org/molvis/>
ISSN 1090-0535
