Figure 2 of
Mansergh, Mol Vis 2004;

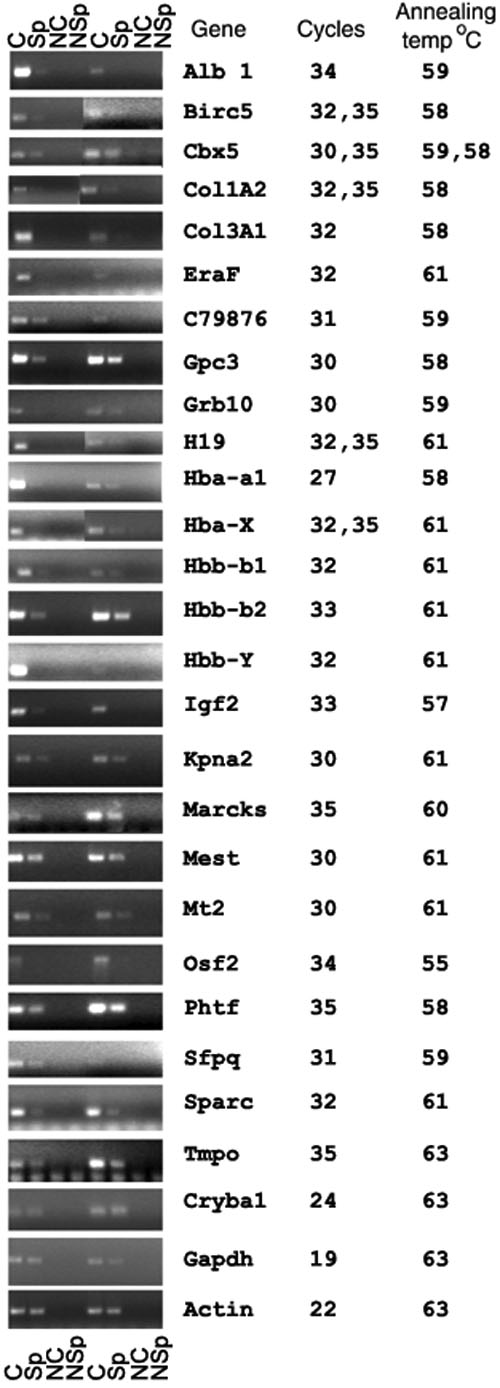

Figure 2. RT-PCR confirmations of genes differentially regulated in 9 month Sparctm1cam129Sv/Ev lenses
Gene name, number of cycles and annealing temperature used in the PCR reactions corresponding to each gene are given to the right. The lane labels (duplicated at the top and bottom) identify the control 129Sv/Ev 9 month male lenses (C); Sparctm1cam129Sv/Ev 9 month male lenses (Sp); control, no RT added to the reaction (NC); and Sparctm1cam129Sv/Ev, no RT added to the reaction (Nsp). Two sets of samples from different control and experimental animals were used.
