Figure 7 of Leske, Mol Vis 2004; 10:43-50.

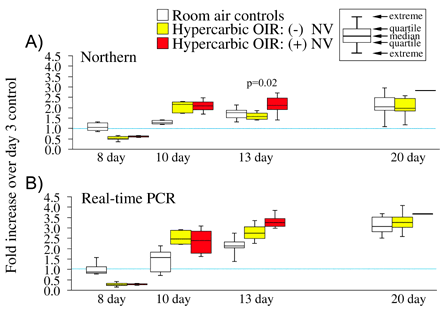

Figure 7. Retinal VEGF mRNA expression in retinae with and without neovascularization

Median expression of retinal VEGF mRNA in eyes of rats with and without neovascularization by Northern blot analysis (A) and qRT-PCR (B). Retinal VEGF mRNA was higher (p=0.02) on day 13 by Northern blot analysis in eyes of rats with neovascularization in the contralateral eye than without neovascularization. There were no other times demonstrating a statistically significant difference between rats with and without neovascularization (NV).

(18 K)

Leske, Mol Vis 2004; 10:43-50 <http://www.molvis.org/molvis/v10/a6/>
