Figure 3 of
Leske, Mol Vis 2004;
10:43-50.

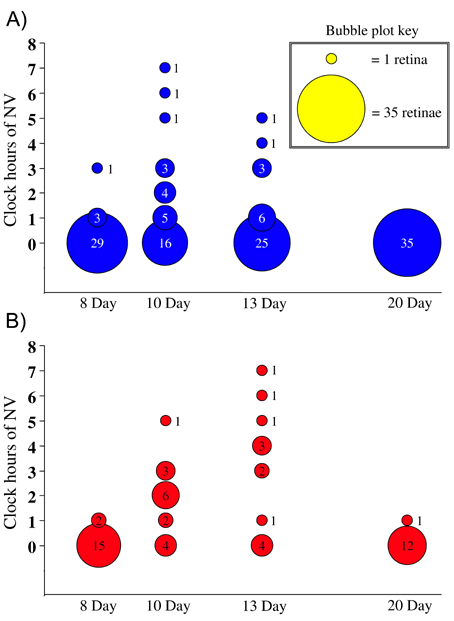

Figure 3. Severity of neovascularization
Severity of neovascularization for normocarbic OIR (A) and hypercarbic OIR (B) at days 8, 10, 13, 20. Severity of neovascularization is most severe at days 10 and 13 in both normocarbic OIR and hypercarbic OIR. NV refers to neovascularization.
