Figure 4 of Kijas, Mol Vis 2004; 10:223-232.

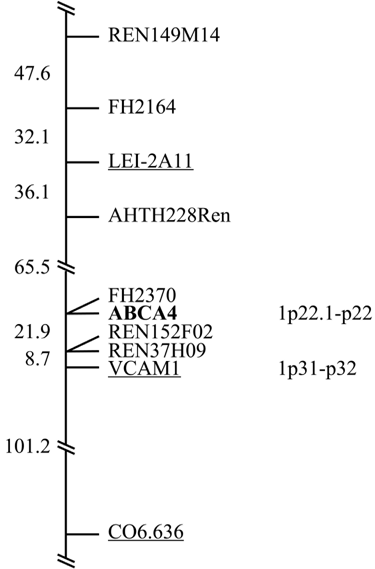

Figure 4. Position of ABCA4 on CFA6

A whole-genome dog/hamster RH3000 panel was used and the order of backbone markers (underlined) was chosen according to previous publication [19]. The map was extended with statistical support >100:1. The map is divided into three linkage groups based on two point linkage, and all distances correspond to cR3000 units. Corresponding cytogenetic position of genes on human chromosomes are shown (right panel)

(22 K)
